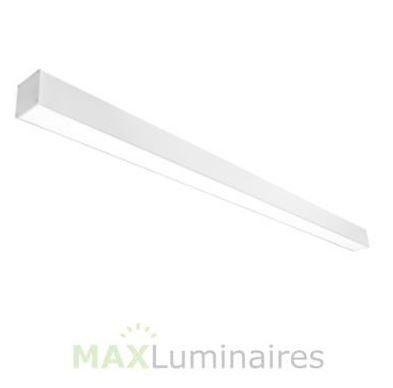

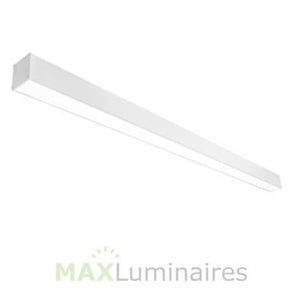

LED L-Max Linear Light-20W/40W/60W

Wattage Size Voltage Lumens CCT
20W 2' 120-277V up to 2,569Lm 35K/4K
40W 4' 120-277V up to 5,262Lm 35K/4K
60W 4' 120-277V up to 7,923Lm 35K/4K


The compact and high-performing L-Max brings eye-pleasing illumination to architectural and commercial interiors. Designed to be either surface mounted or suspended, this lightweight and easy-to-install luminaire lends a clean aesthetic to offices, retail spaces, supermarkets, stairwells and other applications that require high quality lighting that is DLC Premium listed and price-effective. The L-Max can be quickly and easily linked together to create runs of light that appear seamless.

  • Offered in 2 ft (20W) and 4 ft (40W and 60W) versions
  • DLC Premium, low bay and Stairwell listing on select models
  • Suitable for damp locations
  • Varying layout configurations (Linear, T, X, L)
  • Linkable for continuous runs up to 10 units
  • Surface mounting and pendant mounting standard
  • Emergency lighting (battery backup) and Sensor option available
  • L70 <= 100,000 hours at 25°C Ambient
  • Standard Five year limited warranty

Connectors and additional features sold separately. Email sales@maxluminaires.com for details.
